07/14/2023

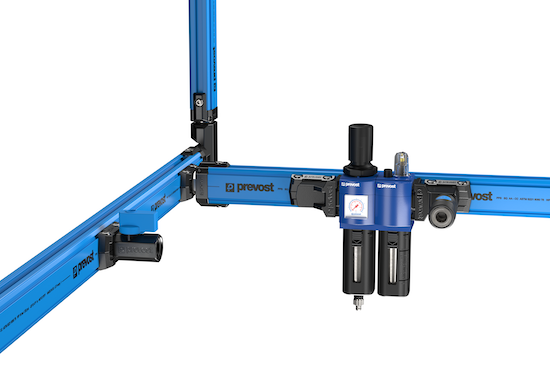

Prevost Corporation, an international manufacturer of pneumatic equipment, is pleased to announce its Prevost Piping System (PPS) 100% aluminum line now includes a modular, fully customizable solution to outfit individual workstations in manufacturing settings. The PPS SQ line is constructed of extruded aluminum and transforms the structure of a workbench into an active compressed air system.
The 25 mm (1”) diameter center of PPS SQ acts as a pipe to move air, while the external grooved profile can be used to mount accessories and tools. Choose from an extensive selection of adaptive fittings to connect the 1- or 2-meter (3 3/8 ft. or 6 ½ ft.) sections to create a customed workbench on production or assembly lines. By running air power to each station, workers can move unhindered from station to station increasing productivity.
The system is intuitive and easy to assemble resulting in reduced installation time. PPS SQ accessories directly integrate into existing workstations and are compatible with existing extruded aluminum workstation profiles available on the market today. PPS SQ’s revolutionary design is the first in its class and will set a new standard for pneumatic powered aluminum work benches in the manufacturing industry.
Customize your workbenches with a full range of accessories.
Design and build ergonomic, efficient workstations tailored exactly to specific application. Some accessories include:
- FRL Connector PPS SQFRL - Mount a Prevost FRL unit (ATU B OR ATU M) with a prevoS1 coupling port
- Valve Quick Branch PPS SQBFV - Turn off air when not in use to reduce consumption
- Outlet Body PPS SQBFT - Install prevoS1 quick connect safety coupling outlets
- Double Body Outlet PPS SQO9C2512 - Connect a tool balancer and install an outlet to hang pneumatic tools with a coil hose
- Cross Body Fitting PPS1 CR27 - Link consecutive PPS SQ workstations together to eliminate exposed pipe throughout the facility and reduce the overall amount pipe required
- Join Body PPS JN - Move air flow around a 90° angle
- Prevost offers a full range of installation tools for quick assembly
Technical specifications
Material: 100% aluminumColors: blue or gray
Lengths: 1 m (3 3/8ft.) or 2 m (6 ½ ft.)
Diameter: 25 mm (1”)
Maximum service pressure: 232 psi
Service temperature: -4°F to 176°F
Internal accreditation
Though our rigorous Research & Development processes, stringent manufacturing operations and thorough quality inspections the Prevost Piping System is the ideal choice for clean air and sterile environments. Our products meet the following international requirements: ISO 9001 for quality management, ISO 8573-1 Class 0.0.0 for air quality, ASME B31.1 & ASME B31.3 for pressurized equipment, Fire Classification UL 723 - ASTM E84 and ATEX approved for gas, areas 1 & 2 then dust, areas 21 & 22.
About Prevost
Since 1978, Prevost has been developing, manufacturing, and marketing a complete range of products suitable for air, fluid, and vacuum systems. Innovation has always been our core value and why we strive to develop professional grade, safe and sustainable products. We specialize in safety couplings, blowguns, piping networks, air filtration and pneumatic equipment. For more information, visit www.prevostusa.com.
